Ap 8-35 American Complete Set of Drawings

$180.00
SKU
Ap 8-35 Complete Set Drawings

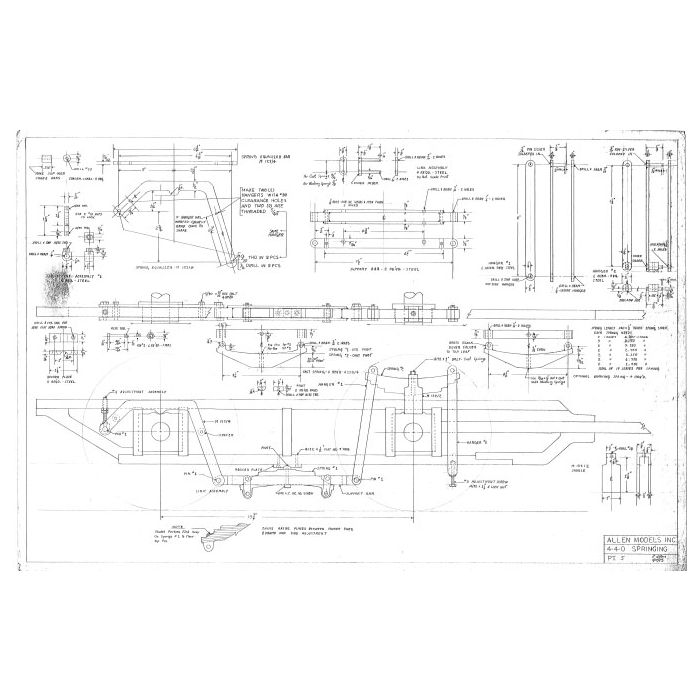

This is the complete set of drawings needed to build the Allen American 4-4-0.  A sample sheet thumbnail and a sample drawing detail of the crosshead is shown here. The drawings sheets range in size from 24" X 36" to 30" X 60" for some of the larger erection drawings depending on the locomotive. See below for a complete list of sheets included.

This is the complete set of drawings needed to build the Allen American 4-4-0.  The drawings sheets range in size from 24" X 46" to 30" X 60" for some of the larger erection drawings depending on the locomotive.  The complete list of sheets for the American is as follows.   Note that not all sheets are in continuous numerical order as some sheets are shared between locomotives and retain their numbering.

1 Erection drawing, side
2 Erection drawing, front
3 Running boards, headlight, hand rails, whistle, bell
3a Frame spreader
4 Driver assembly
5 spring rigging
6 brake rigging
7 cylinders
8 cross head & main rod
9 front end assembly
10 valve gear
11 valve gear
13 pilot
14 Axle pump, side rod, sand box saddle
17 lead truck

19 smokestack
20 smokebox door and headlamp
21 superheater, throttle
22 cab
23 cab, coupler
24 domes, reverse gear
25 piping details
26 tender trucks, car truck
27a tender frame details
28 tender frame
29 tender tank and side view
30 ash pan
31 misc details
32 boiler
33 boilers
34 boiler jacket
