CP 8-22 Chloe Complete Drawing Set

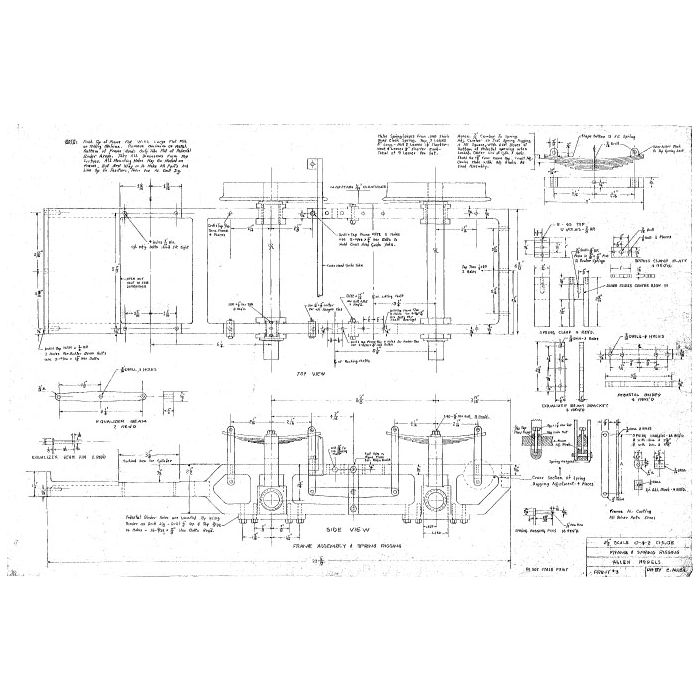

This is the complete set of drawings needed to build the Allen Models Chloe. A sample sheet thumbnail and a sample drawing of the crankpin in detail is shown here. The drawings sheets are 24" X 36. See below for a complete list of sheets included.
This is the complete set of drawings needed to build the Allen Models Chloe. The drawings sheets are 24" X 36" in size. The complete list of sheets for the Chloe is as follows. Note that not all sheets are in continuous numerical order as some sheets are shared between locomotives and retain their numbering.
|
1 Erection |
12 Water tank and floorboards 13 Cab 14 Headlight, domes, running boards 15 Boiler 16 Throttle & steam line header 17 Boiler erection 18 Smoke box fitting 19 Smoke box, sway bars, buffer 20 Crosshead pump & yoke 21 Ash pan, grate, boiler mating 22 Piping & misc. details |
