MP 8-39 Mogul Complete Set of Drawings
$180.00
SKU
MP 8-39 Complete Set of Drawing

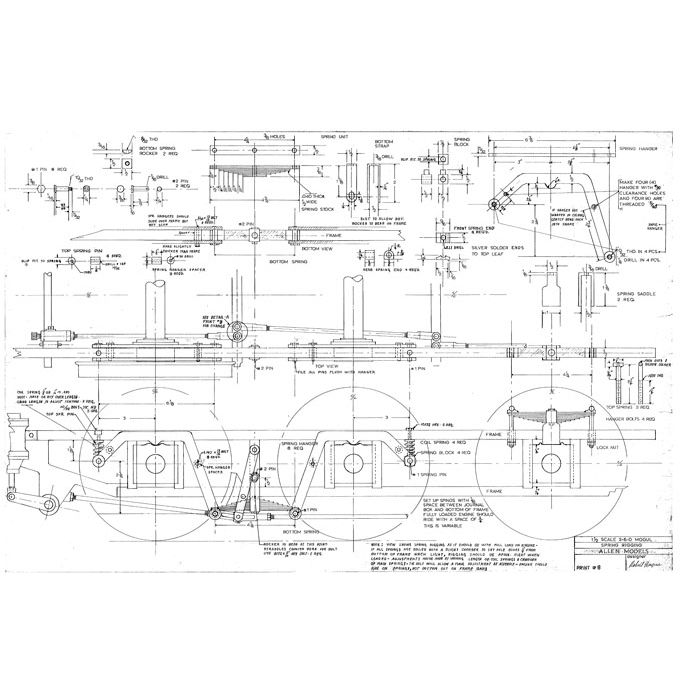

This is the complete set of drawings needed to build the 2-6-0 Allen Mogul. A sample sheet thumbnail and a sample drawing detail of the crosshead is shown here. The drawings sheets range in size from 24" X 36" to 30" X 60" for some of the larger erection drawings depending on the locomotive. See below for a complete list of sheets included.
This is the complete set of drawings needed to build the 2-6-0 Allen Mogul. The drawings sheets range in size from 24" X 46" to 30" X 60" for some of the larger erection drawings depending on the locomotive. The complete list of sheets for the Mogul is as follows. Note that not all sheets are in continuous numerical order as some sheets are shared between locomotives and retain their numbering.
| 1 Mogul – Erection Side View 2 Erection front & back view 3 Frame 4 Frame & Yoke Support 5 Frame castings 6 Drivers, axle boxes, axles 7 Side rods, crank pins 8 spring rigging 9 brake rigging 10 cross head, cylinder head yoke, main rods 11 cylinder details 12 smoke box saddle, exhause pipe, axle pump 13 front end assembly 14 general assembly 15 valve gear 16 valve gear 17 pony truck |
18 valve details, coupler 19 smoke box, stack 20 smoke box door, number plate, head light 21 throttle, super heater 22 cab 23 cab 24 domes, reverse gear 25 piping 26 tender trucks 27 tender frame 28 tender frame 29 tender tank 30 ash pan, rear boiler mounting 31 misc details – running boards, cast fire door, throttle leve, water filler, cylinder oiler fittings 32 boiler 33 boiler 34 boiler jacket 35 cast throttle set, whistle, bell, running board mounts |
