Shay Section 02

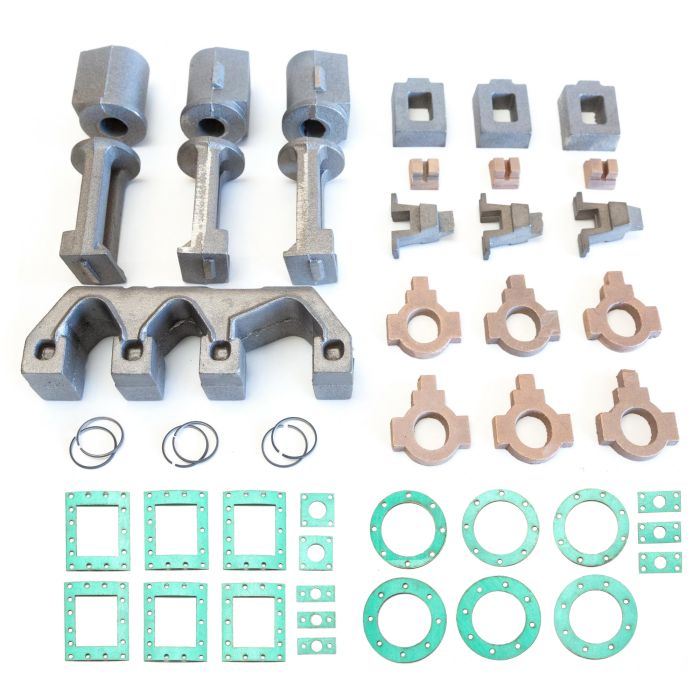

These are all the castings needed to complete the engine set for two and three truck shays.

The engine portion of the locomotive is made using the listed castings along with brass and stainless steel round stock. The crankshaft is fabricated from drill rod and cold rolled steel bar stock. The intake and exhaust manifolds are made from copper pipe and 1/4" copper soldered joint fittings. The drawings cover the machining and fabrication of all the parts needed to make the three cylinder engine.
Shay Section 02

S166-1 Shay Engine Gasket Set

$32.00
Shay Section 02

S189-3 Link and Block

$425.00
Shay Section 02

S156-1 Cylinder

$15.19
Shay Section 02

S160-1 Steam Chest

$7.41
Shay Section 02

S163-1 Slide Valve

$8.75
Shay Section 02

S162-1 Piston Ring

$7.00
Shay Section 02

S188-1 Eccentric Strap

$14.88
Shay Section 02

S151-1 Cross Head Guide

$12.60
Shay Section 02

S148-1 Valve Stem Guide

$7.57
Shay Section 02

S149-1 Crank Case

$66.46
Description

Details

These are all the castings needed to complete the engine set for two and three truck shays. The engine portion of the locomotive is made using the listed castings along with brass and stainless steel round stock. The crankshaft is fabricated from drill rod and cold rolled steel bar stock. The intake and exhaust manifolds are made from copper pipe and 1/4" copper soldered joint fittings. The drawings cover the machining and fabrication of all the parts needed to make the three cylinder engine.
