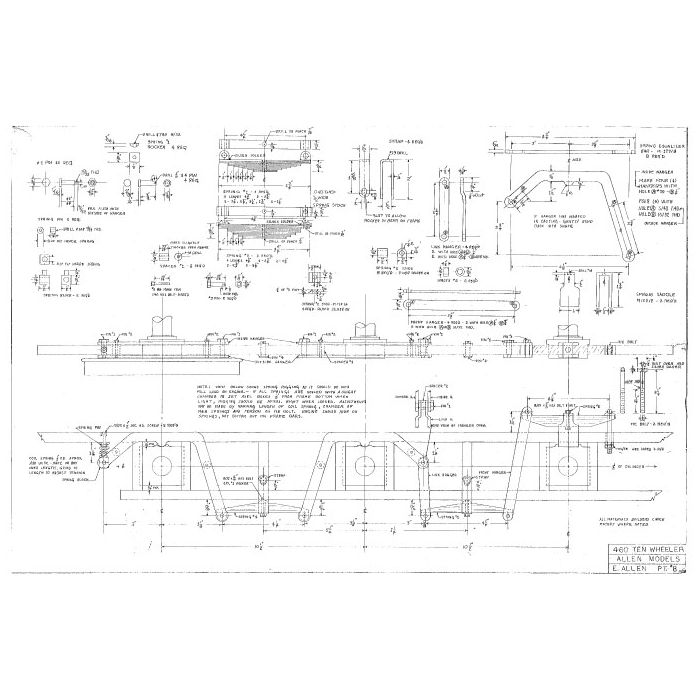

This is the complete set of drawings needed to build the Allen Ten Wheeler. A sample sheet thumbnail and a sample drawing detail of the crosshead is shown here. The drawings sheets range in size from 24" X 36" to 30" X 60" for some of the larger erection drawings depending on the locomotive. See below for a complete list of sheets included.
This is the complete set of drawings needed to build the Allen Ten Wheeler. The drawings sheets range in size from 24" X 46" to 30" X 60" for some of the larger erection drawings depending on the locomotive. The complete list of sheets for the Ten Wheeler is as follows. Note that not all sheets are in continuous numerical order as some sheets are shared between locomotives and retain their numbering.
1 Erection side view 2 Erection front and back view 3 running board brackets 4 frame details 5 frame castings detail 6 drivers, axles, journal boxes 7 side rods, crank pins 8 spring rigging 9 brake rigging 10 crosshead, yoke, main rod 11 cylinder block 12 smoke box saddle, exhaust details 13 pilot, front end details 14 assembly 15 valve gear 16 valve gear 17 lead truck
