Shay Section 01

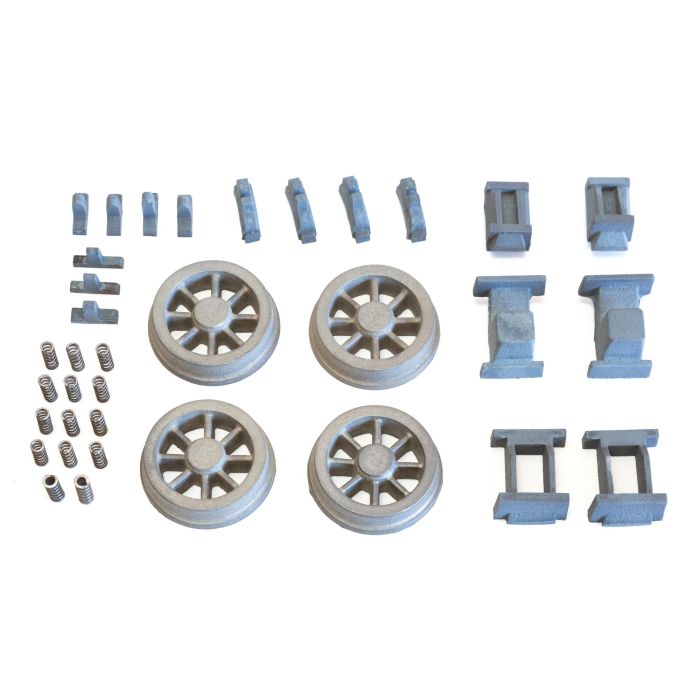

This section includes all of the castings needed to build the trucks. The quantities are defaulted to the amount needed to build a three truck shay.

The trucks are fabricated using the listed castings along with various shapes of hot rolled steel bar and angle. The gears are stock gears which are manufactured by either Boston Gear or Martin Gear. The axles run on ball bearings while the drive shaft runs in bronze bushings. The drawings cover the machining of the truck castings along with the other components needed to complete the trucks. The brakes are steam actuated and there are drawings covering the brake system.
Shay Section 01

S109-1 Shay Drive Wheel

$17.16
Shay Section 01

S111RH-1 RH Journal Box

$13.49
Shay Section 01

S111LH-1 LH Journal Box

$11.51
Shay Section 01

S198RH-1 RH Pedestal

$9.55
Shay Section 01

S198LH-1 LH Pedestal

$9.55
Shay Section 01

S135-1 Brake Shoe Bracket Set of 7

$14.39
Shay Section 01

S138-1 Brake Shoe

$3.99
Shay Section 01

S125L-1 Spring Set

$28.29
Description

Details

This section includes all of the castings needed to build the trucks. The quantities are defaulted to the amount needed to build a three truck shay. The trucks are fabricated using the listed castings along with various shapes of hot rolled steel bar and angle. The gears are stock gears which are manufactured by either Boston Gear or Martin Gear. The axles run on ball bearings while the drive shaft runs in bronze bushings. The drawings cover the machining of the truck castings along with the other components needed to complete the trucks. The brakes are steam actuated and there are drawings covering the brake system.
